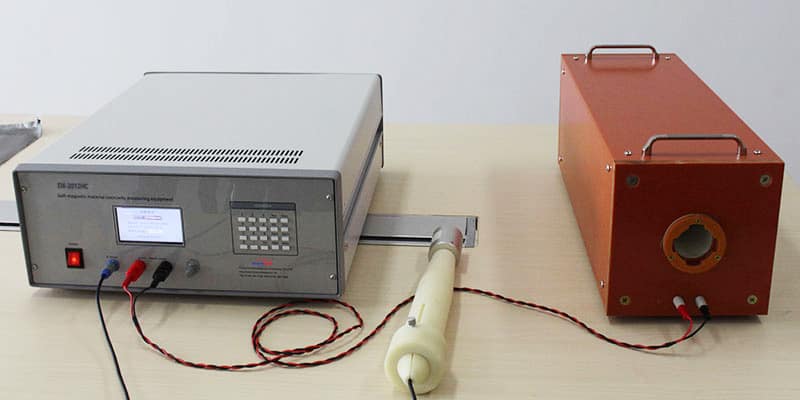

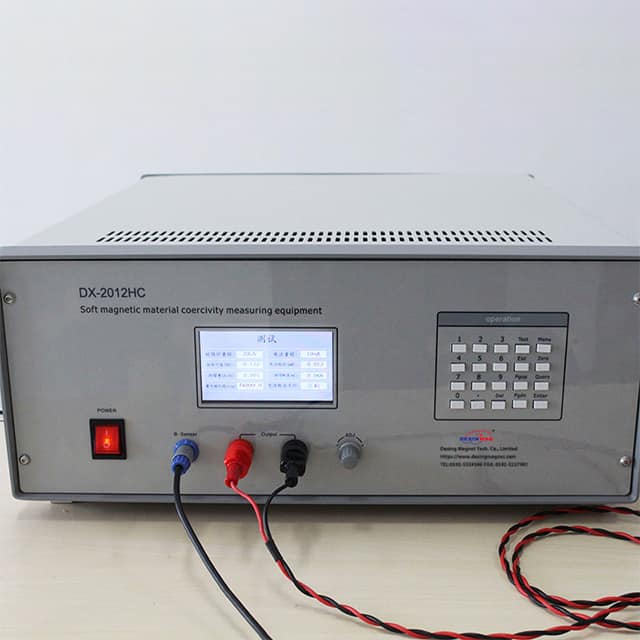

DX-2012HC soft magnetic material coercivity measuring device

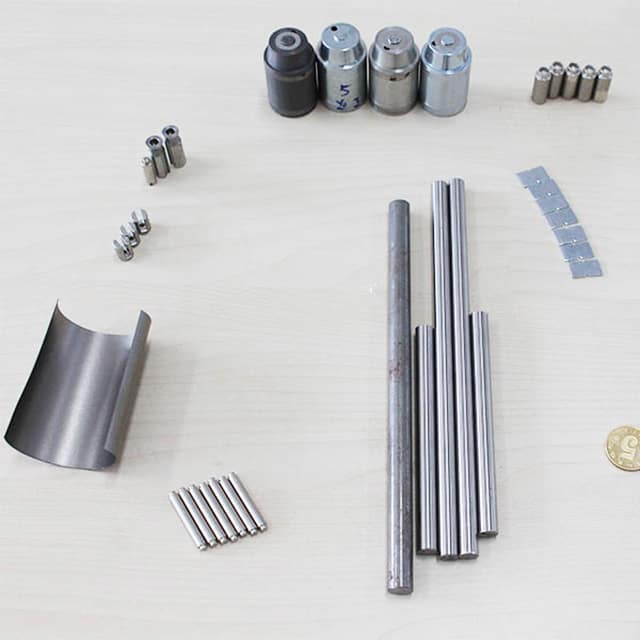

DX 2012HC soft magnetic material coercivity measuring device is mainly used for rapid measurement of soft materials including: pure iron and carbon steel, soft ferrite, magnetic powder and other regular and irregular open circuit samples, and the test method is reliable.
contact nowDX-2012HC soft magnetic material coercivity measuring device
| Features |
1. Direct measurement of coercive force HC of soft magnetic materials 2. Directly test the magnetized magnetic field HS of the soft magnetic material sample |
| Standard configuration |
1. One DC program-controlled excitation power supply 2. A set of high-resolution weak magnetic field meter |
| Technical Index |
N | Subject | Index |
1 | Test sample material | Soft magnetic material |
2 | Sample shape | Irregular and regular samples such as sticks and bars |
3 | Sample size | Below Φw25mm Below l200mm |
4 | Hs Magnetic field range | -40ka/m---40ka/m |
5 | Hc test range | 5.0A/m---1.0ka/m |
6 | Test resolution | 0.1A/m（Valid bit) |
7 | Test precision | 3.0%±1A/m |
8 | Test repeatability | 1.0% |
inquiry now
We will give you a quotation within 24 hours.
-
DX-2012HC Soft Magnetic Material Coercivity Measuring Device
DX 2012HC soft magnetic material coercivity measuring device is mainly used for rapid measurement of soft materials including: pure iron and carbon steel, soft ferrite, magnetic powder and other regular and irregular open circuit samples, and the test method is reliable.
-
DX-100 Hall Effect Measurement System
DX 100 Hall effect test system can be divided into normal temperature, high temperature, low temperature, high and low temperature Hall effect test system; It is used to measure the carrier concentration, mobility, resistivity, Hall coefficient, etc. of semiconductor materials; It is an essential tool for studying the electrical properties of semiconductor materials.
-
DX-9000 Series Vibration Sample Magnetometer
DX-9000 series vibrating sample magnetometer is a kind of magnetometer developed by Xiamen Dexing Magnet Tech. Co., Ltd. The main research and development of the magnetic material measurement system is a new generation of products based on the electromagnet platform.
-
DX-2100AM Magnetization Angle Measurement System
The DX 2100AM magnetization angle measurement system is connected to the independent three component fluxmeter by a three dimensional Helmholtz coil to form a hardware test part;Through a microcomputer conversion of the test data of three components, a complete magnetization angle measurement system is formed.
