DX-320HC Coercive Force Meter
DX-320HC Coercimeter is specialized in measuring the coercivity of soft magnets. The measured samples are soft magnets with shape of strip, bar and sheet, and magnetic components such as relay, electromagnet valve, magnetic head and so on. It can visually evaluate the magnetic change of magnetic components during the workmanship(such as electroplating, annealing and welding)
contact nowDX-320HC Coercive Force Meter

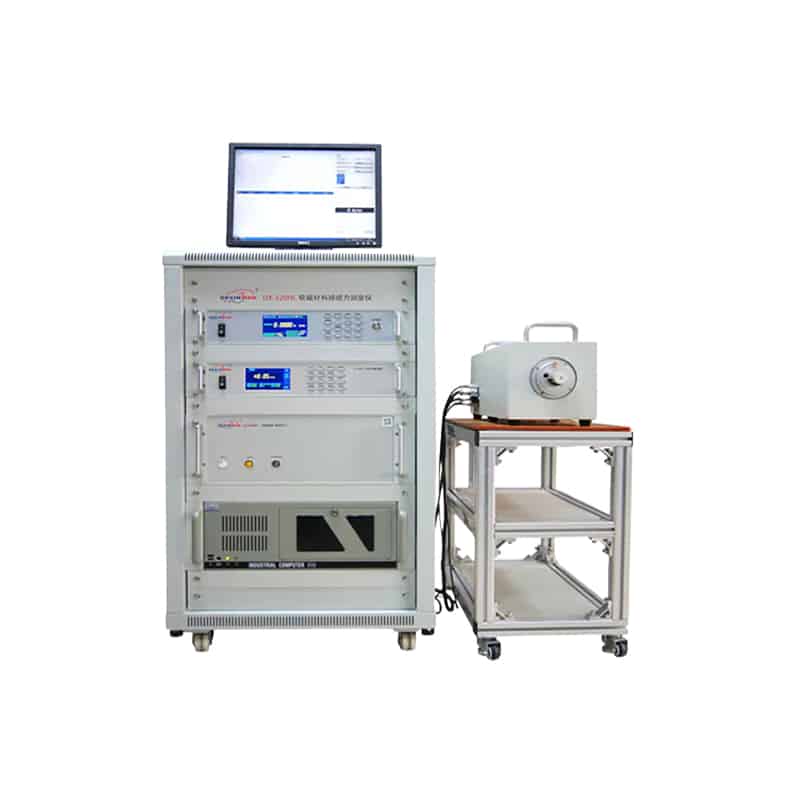

DX-320HC Coercimeter is specialized in measuring the coercivity of soft magnets. The measured samples are soft magnets with shape of strip, bar and sheet, and magnetic components such as relay, electromagnet valve, magnetic head and so on. It can visually evaluate the magnetic change of magnetic components during the workmanship(such as electroplating, annealing and welding); and also be used for magnetic measurement of magnetic label, magnetic anti-forgery ink and cemented carbide. Coercimeter adopts vibration sample zero flux detection sensor, with high sensitivity and accuracy. It can test sample by operating the panel under the condition of stand-alone machine and also test by upper computer software control.
Application Fields:
1. Test sample category: soft magnets such as electrical pure iron, precision alloy, martensitic
2. Test sample shape: strip, sheet and rod.
3. Directly test the coercivity of soft magnet components such as relay, solenoid value, magnetic head, leakage protector, magnetic label as so on. (Equip with measuring fixture).

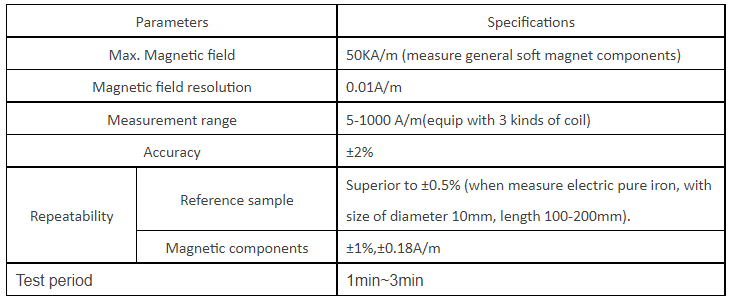

4. Test range:5~1000A/m.
5. Sample size: maxΦ57mm*200mm,Min:20μm x 1mm x 30mm (equip with customized test platform)
6. Instrument adopts ARM control technology, a variety of signal processing algorithm, fast fuzzy algorithm, digital filtering algorithm, intelligent ΔB control technology.
inquiry now
We will give you a quotation within 24 hours.
-
DX-2012HC Soft Magnetic Material Coercivity Measuring Device
DX 2012HC soft magnetic material coercivity measuring device is mainly used for rapid measurement of soft materials including: pure iron and carbon steel, soft ferrite, magnetic powder and other regular and irregular open circuit samples, and the test method is reliable.
-
DX-100 Hall Effect Measurement System
DX 100 Hall effect test system can be divided into normal temperature, high temperature, low temperature, high and low temperature Hall effect test system; It is used to measure the carrier concentration, mobility, resistivity, Hall coefficient, etc. of semiconductor materials; It is an essential tool for studying the electrical properties of semiconductor materials.
-
DX-9000 Series Vibration Sample Magnetometer
DX-9000 series vibrating sample magnetometer is a kind of magnetometer developed by Xiamen Dexing Magnet Tech. Co., Ltd. The main research and development of the magnetic material measurement system is a new generation of products based on the electromagnet platform.
-
DX-2100AM Magnetization Angle Measurement System
The DX 2100AM magnetization angle measurement system is connected to the independent three component fluxmeter by a three dimensional Helmholtz coil to form a hardware test part;Through a microcomputer conversion of the test data of three components, a complete magnetization angle measurement system is formed.
