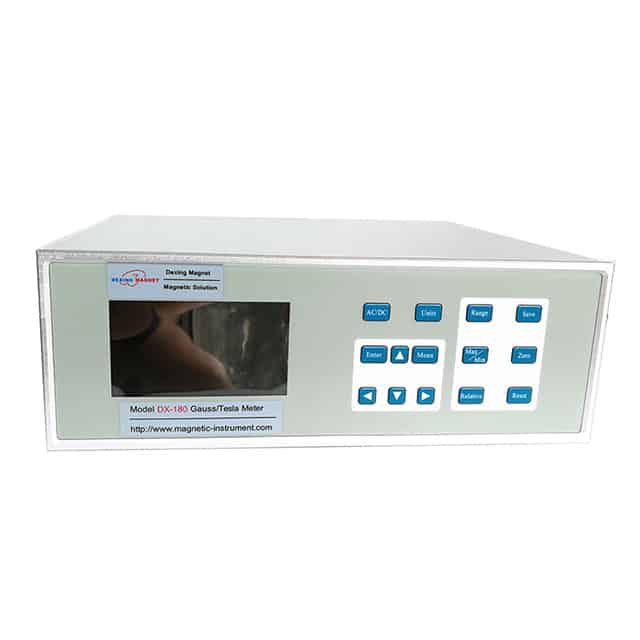

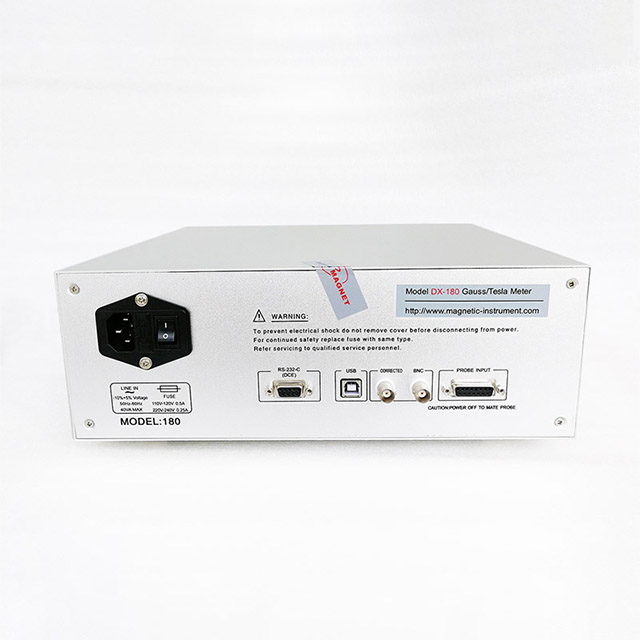

DX-180 Gauss Meter

DX-180 Gauss Meter

            This extremely high-precision instrument is suitable for the vast number of applications. It provides a wide-range measurement from DC to up to 100 kHz AC magnetic field measurement. It also has functions of auto-zeroing and auto-range. Maximum value, minimum value, peak and valley is selectable at hold mode. This instrument can measure and display a variety of parameters simultaneously. High precision analog output（±3.0V）. Units of measure optional Gauss, Tesla, A / M or Oe. This instrument also provides RS232 interface for communications with PC. It is designed and manufactured in accordance with ISO-9001 standard. With the functions of bright VGA color graphics, excellent self-drawing, full menu operation, 5 ¾-bit readings, high-resolution 1 / 600000, it makes you convenient to observe 0.0001mT weak changes in the high magnetic field measurements. It is able to measure maximum at 100KG (10T). It has a large-capacity data storage and you can review the historical-data according to storage time and it can upload data to PC or plot curves in machine. We provide a specially designed professional graphics software which can draw the chart, according to the magnetic field strength and high-precision digital probes. With this Gauss-meter you can achieve goals of measuring, storage, communication, drawing automatically just in one machine. Products are mainly sold to large institutes, universities and research departments of large factories.

Main Function
*Ultra high-precision AC / DC magnetic field measurement/ Automic temperature compensation system/ Multipole variable speed test function
*Excellent graphical display of magnetic field strength and self-drawing.
*Extremely wide range: This machine can  measure 0.01uT-10T, automatic identification of low and ultra-high magnetic field probes, automatically adjust to the suitable range when choosing auto range, manul-selected has three gears.
* Excellent real-time wired or wireless remote control system (1500 M).



The interface of the mapping software



Picture 1: D plot of rectangular magnets





Picture2: D plot of elliptic magnets

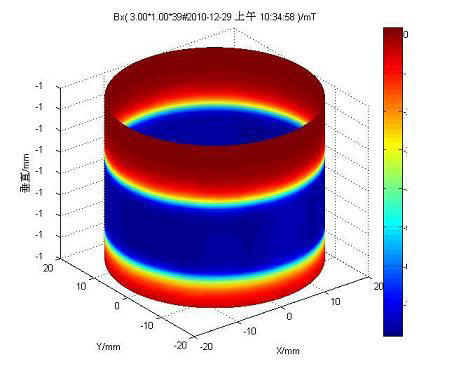

Picture3: D plot of cylindrical magnets



Picture4: D plot of circular magnets

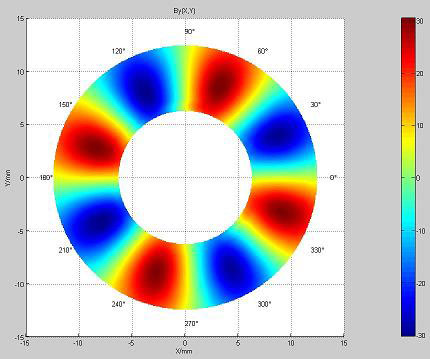

Picture5: D plot of multipole ring magnets
