DX-102 Handheld Gauss Meter

DX-102 Handheld Gauss Meter

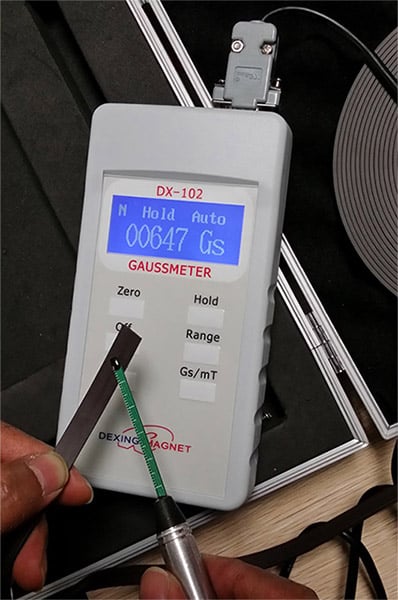

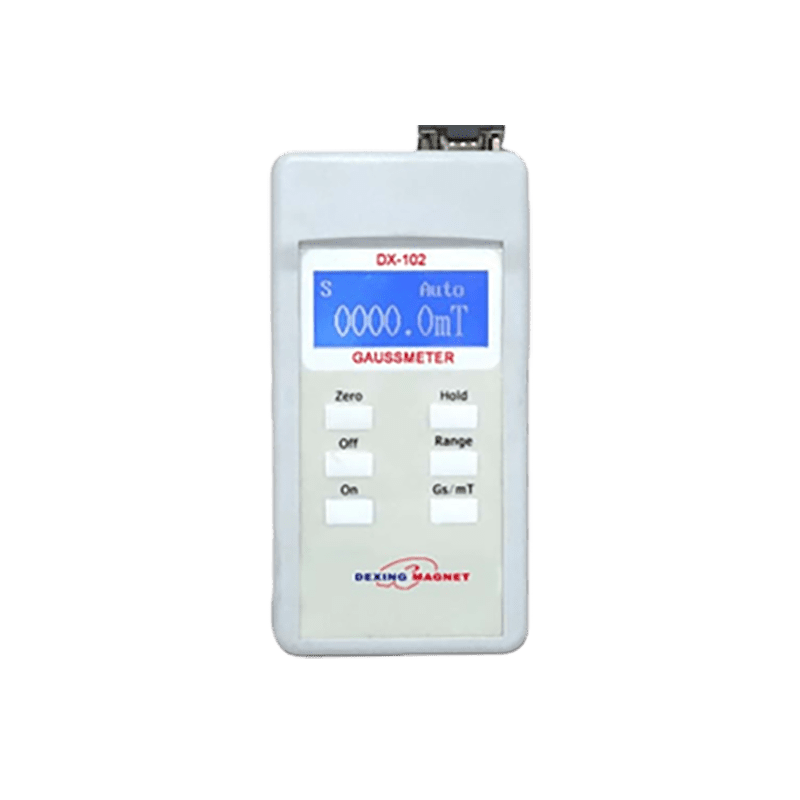

DX-102 Gaussmeter is a portable gauss meter, based on the latest progress of Hall effect magnetic field measuring instrument, adopted DSP technology. Test probe adopts import GaAs linear Hall chip, the difference between any two probes is small, if damaged, it can be replaced directly. DX-102 Gaussmeter is an ideal DC magnetic field test instrument.



Function:

1. DC magnetic field and magnetic field peak value measurement;
2. Permanent magnet magnetic field distribution measurement;
3. The magnetizing measurement of the permanent magnets;
4. The magnetic field distribution measurement inside the DC coil;
5. The air gap magnetic field measurement of DC electromagnet;
6. Normal DC magnetic field measurement.

Features:

1. Direct reading of magnetic field;
2. Direct displaying of the north and south pole (N/S) of magnetic field;
3. A key of zeroing
4. mT / Gs unit switch;
5. Easy operation, without calibration;
6. The battery can be used for long time;
7. LCD backlight

Parameters:

1.Battery: low voltage 6V (4 pcs of AA batteries)
2. Range: 30.0mT, 300mT, 3000mT three gears
3. Accuracy: (1). better than 1.0% (0 ~ ±1000mT);
                      (2). better than 2.0% (＞1000mT );
4. Auto power-off after 60 seconds’ interval
5. Magnetic field minimum resolution: 0.1mT (1Gs)
6. Dimension: 170mm × 90mm × 40mm
7. Weight: 450g

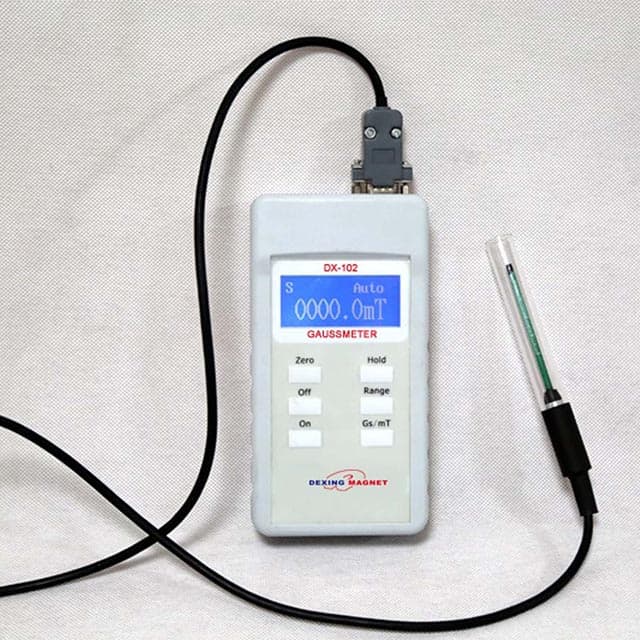

Probe options:

DX-102 Gaussmeter can be matched with one of following three probes according to actual measurement:
1. Transverse probe(Standard probe): L60mm, W3.5mm, T1.0mm, Senstive area: 0.5mm x 0.5mm;
2. Axial probe: L 60mm, Dia. 3.5mm, T0.6mm,Sensitive area: 0.5mm x 0.5mm;
3. Superthin probe: L40mm, W 1.2mm, T0.45mm, Senstive area: 0.25mm x 0.25mm.
