Halbach array permanent magnets
The Halbeck array is a magnet structure that is an engineering-like approximate ideal structure with the goal of producing the strongest magnetic field with the smallest number of magnets. The Halbach magnetic ring combines the radial and parallel arrangement of the magnets.
contact nowHalbach array permanent magnets
Halbach Array is a magnet structure, is the engineering of the approximate ideal structure, the goal is to use the smallest amount of magnet to produce the strongest magnetic field. In 1979, the American scholar Klaus Halbach made the electronic accelerating experiment, found this special permanent magnet structure, and gradually improve the structure, and ultimately the formation of the so-called "Halbach"

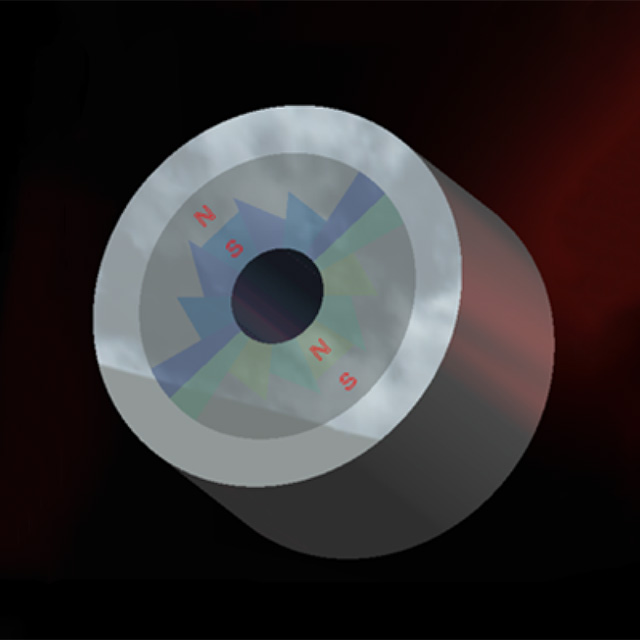

The Halbach magnetic ring combines the radial and parallel arrangement of the magnet. If the end effect is neglected and the permeability of the surrounding magnetized material is considered infinite, the permanent magnet structure eventually forms a one- Side field, which is a significant feature of Halbach.
Array of different ways to form different combinations of magnetic ring :

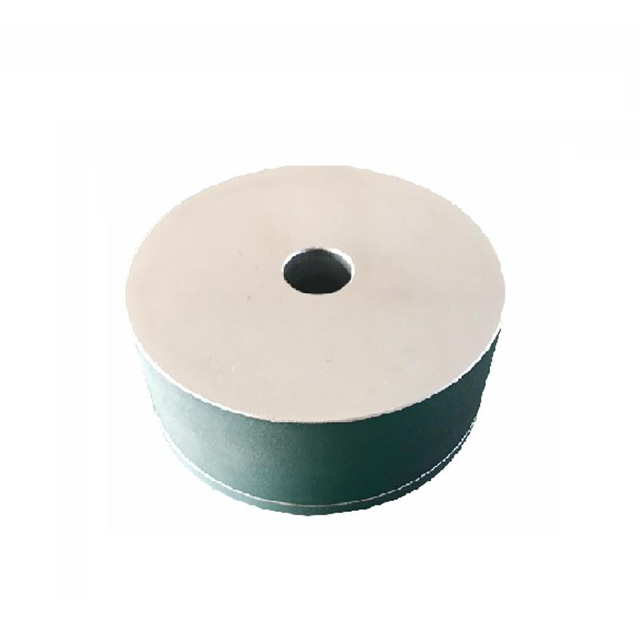

B type magnetic ring H201
Dimensions: Φ60*50mm, inner diameter: Φ20mm, weight: 1Kg
12 sector-shaped magnetic blocks, each having a different magnetization direction, arranged in a Halbch annular array;
Central magnetic field strength is 1.04T;
The uniformity is 0.5% in the axial direction and 0.5% in the radial direction in the center of the magnetic field Φ6*6 mm.
